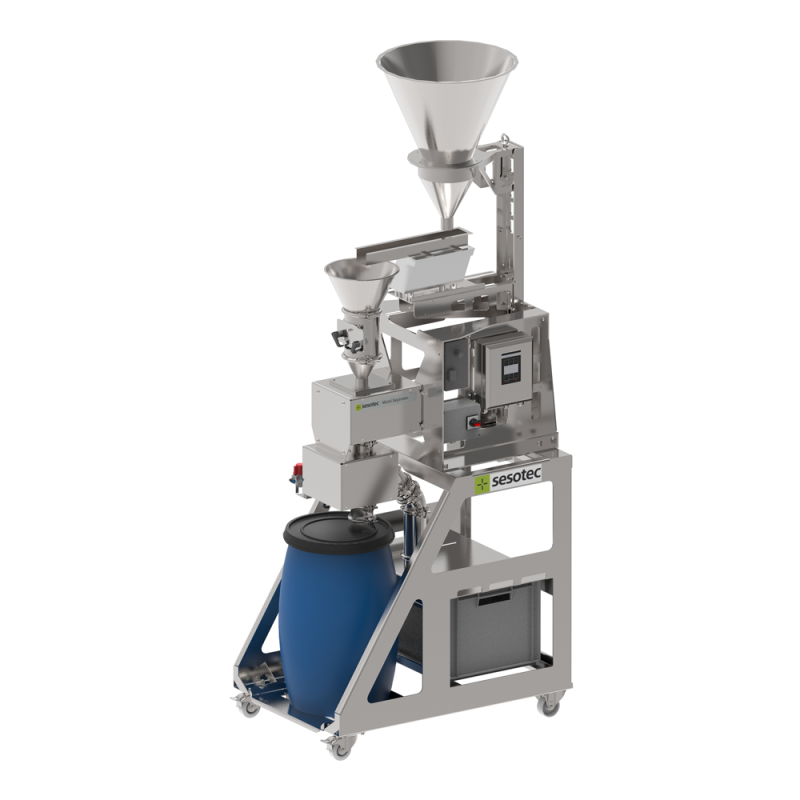

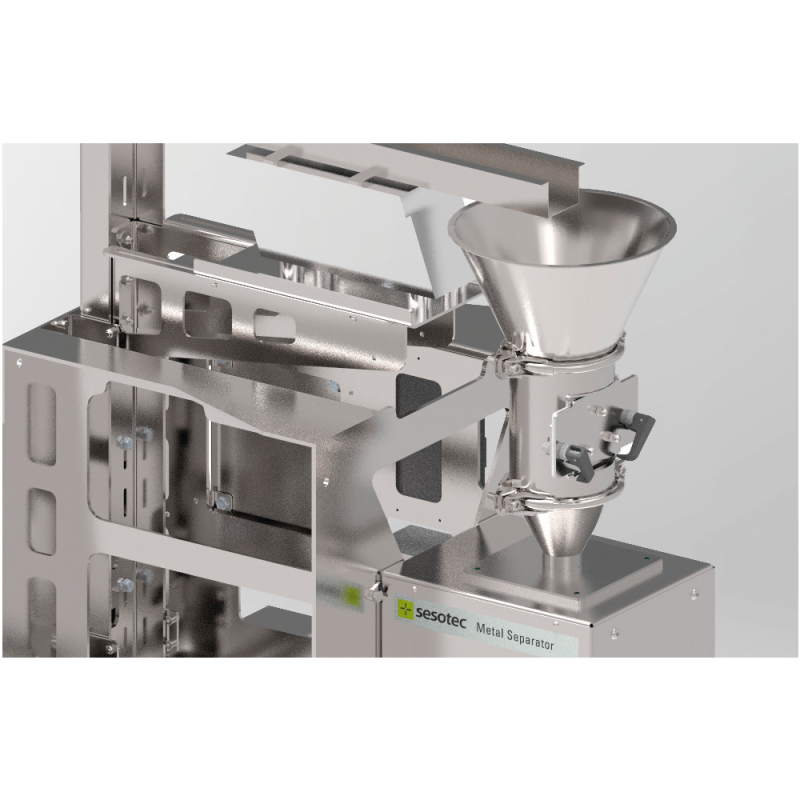

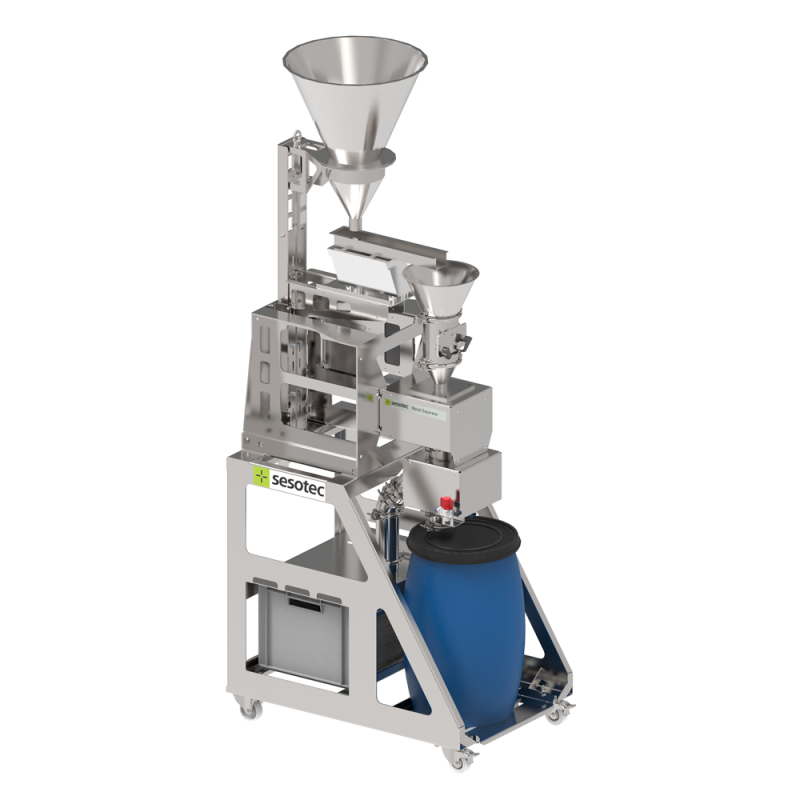

Metal Separator RE-SORT
Mobile metal separation unit for material recovery.
Suitable for Granulate production & compounding, Plastic Processing (esp. In-House Recycling), Chemical and Recycling Industry application.
RE-SORT is available in two version of installation; Stand-alone and Integrated Version. It can be integrated with RAPID VARIO-FS or RAPID PRO-SENSE.

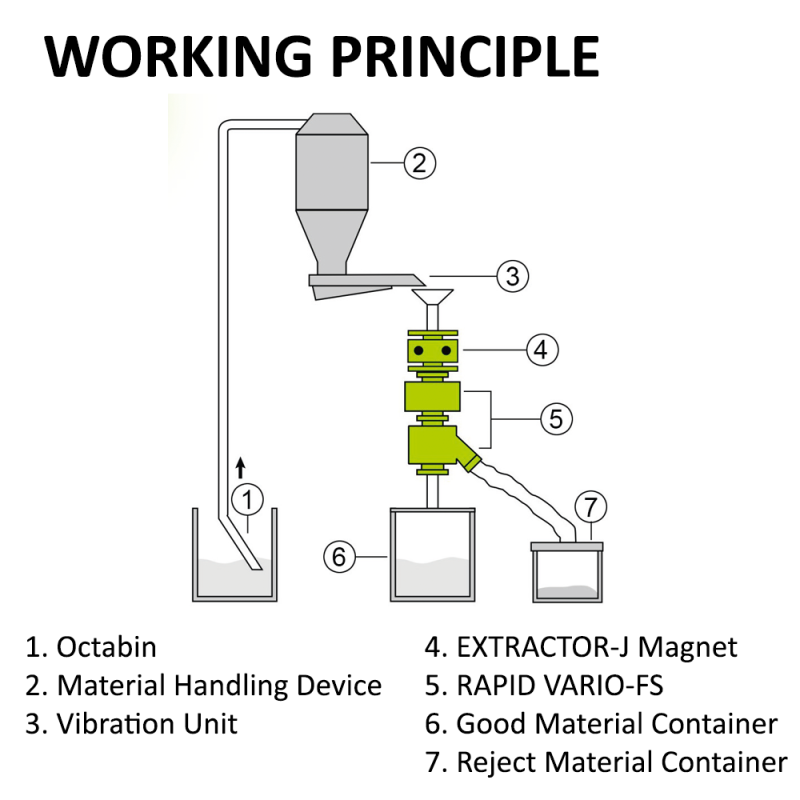

Principle operation; The material is fed into the separating unit via a hopper. The material is separated by the vibrating chute. Then the granulate passes an EXTRACTOR-J magnet system, which separates ferrous metal parts.
Subsequently, the pre-cleaned material passes through the RAPID VARIO-FS metal separator, which discharges the remaining magnetic metal impurities, as well as non-magnetic impurities. The processed material is available for further processing.
Main benefits is to have a recovery rate of up to 98% and resource conservation and cost efficiency.
