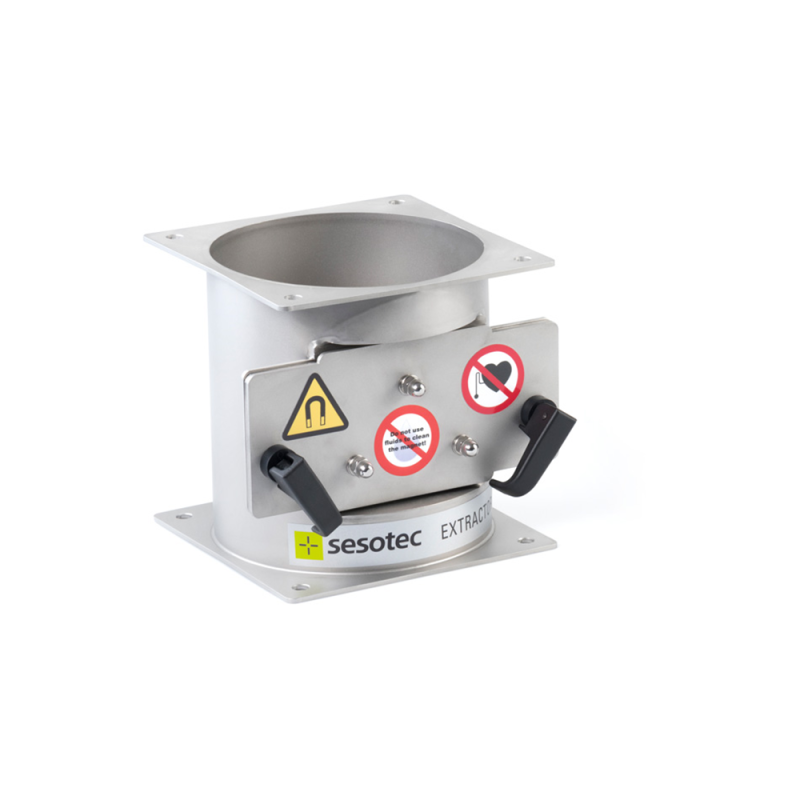

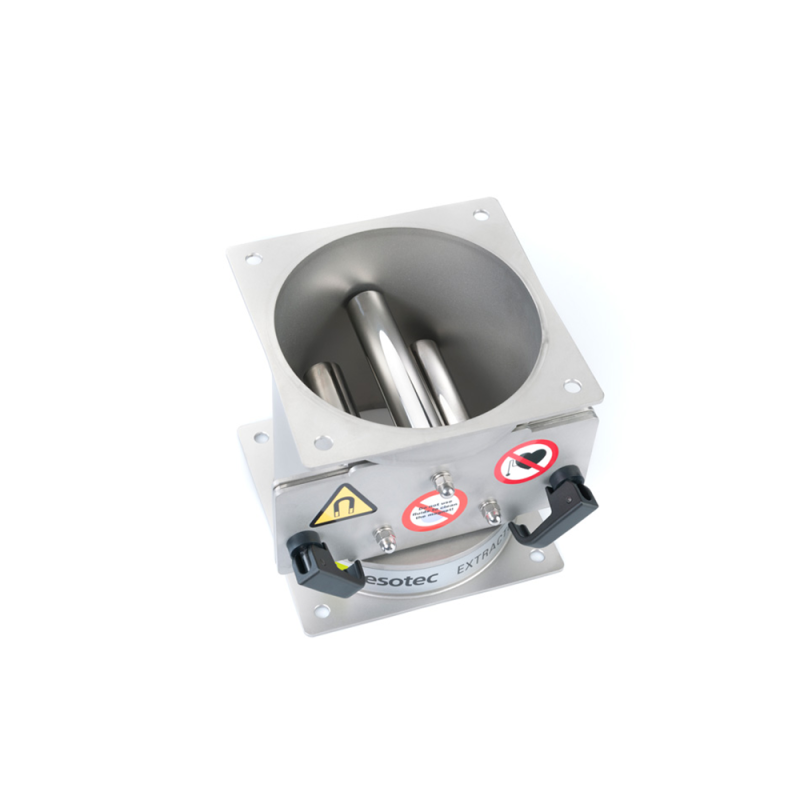

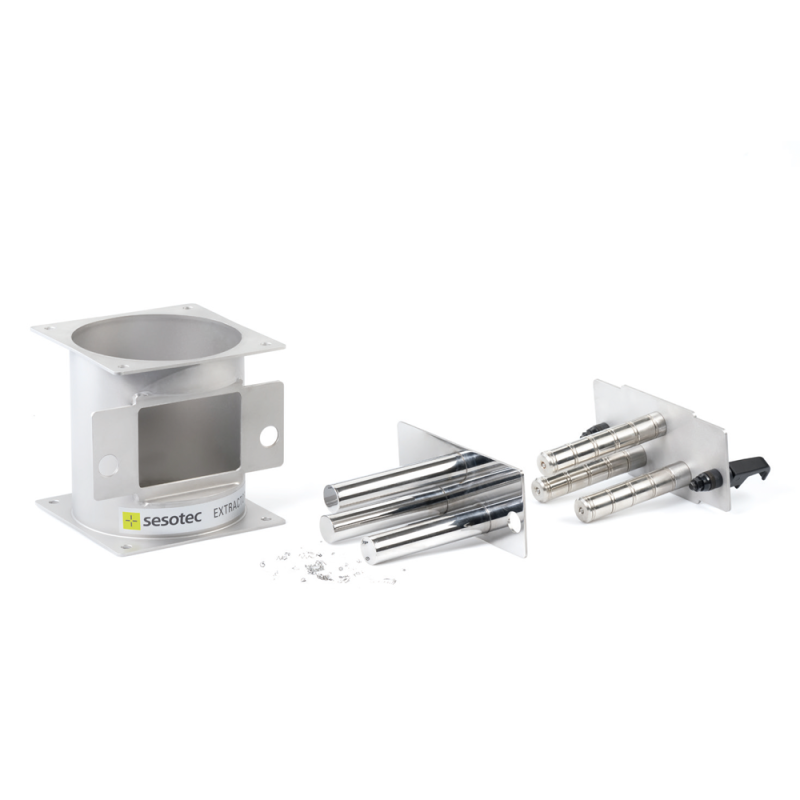

Magnet Detector EXTRACTOR-SE

Inline magnet for protecting extruders, injection molding and blow molding machinery.
Suitable for Plastic Industry with slow moving bulk material columns Installation.

The magnet separator is of a highly sturdy design and is able to take static loads of up to 500 kg (shear load up to 50 kg). With a magnetic force of 800 mT (8 000 gauss) on the effective surface, ferromagnetic particles are reliably separated, which reduces costly repair work and system downtimes. The EXTRACTOR-SE inline magnet is designed for inspecting different granulates up to a grain size of 8-10 mm at a temperature of up to 80° C in slow-moving material columns.
